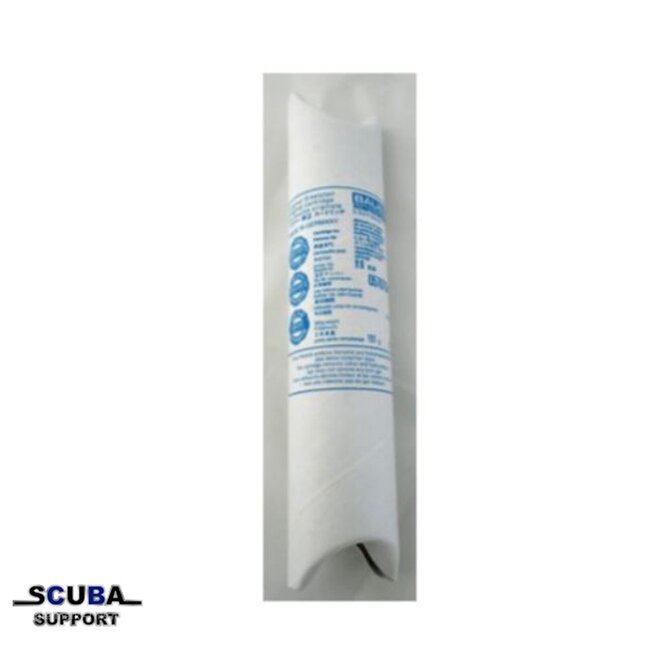

BAUER KOMPRESSOREN filter cartridge 059183 for filter system P21

for high-pressure compressors with petrol engines

All processing systems meet or fall below the limits of DIN/EN 12021 and the European Pharmacopoeia. Depending on the type of cartridge used, the gas is prepared in the following order:

• Rough removal of oil and water droplets: with oil and water separator.
• Removal of water vapor H2O: with molecular sieve, MS
• Removal of oil vapors and odors CXHY: with activated carbon, AC
• Conversion of carbon monoxide CO into CO2: with Hopcalite (optional)
• Removal of coarse particles: with the filter discs of the filter cartridges

Technical data:

• Oil/aerosols: <0.1 mg/m³ (DIN/EN 12021 max. 0.5 mg/m³)
• Carbon monoxide (CO): <5 ml/m³ (DIN/EN 12021 max. 15 ppm)
• Carbon dioxide (CO2): <500 ppm (V/V)
• Water vapour: < 10 mg/m³ (DIN/EN 20021 max. 25 mg/m³)
• Odour/taste: odorless and tasteless
